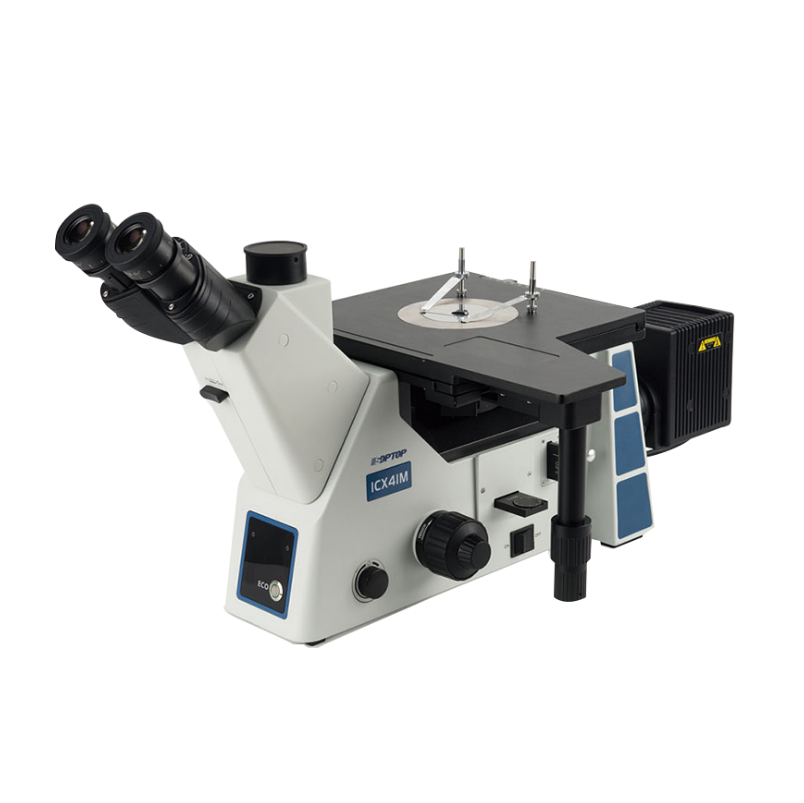

FX-41MW research grade metallographic microscope is equipped with a microscope host, high-definition camera device, and genuine metallographic image analysis software. It adopts a newly designed infinite distance optical system and can be widely used in research on casting, smelting, heat treatment, raw material inspection or material processing analysis, and other detection of inverted microscopes. This machine comprehensively covers various observation methods such as bright field, dark field, simple polarization, differential interference, etc., and is suitable for various research needs.

FX-41MW Technical parameter table of research grade metallographic microscope：

（Note: Other configuration requirements can be communicated with business personnel.）

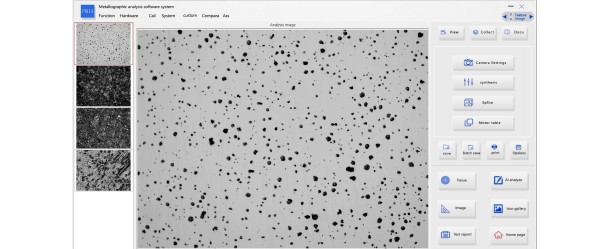

FMIA2026 Introduction to Genuine Metallographic Image Analysis Software：

The FMIA2026 version of metallographic image analysis software is developed by our company based on the current needs of casting enterprises, automotive parts enterprises, heat treatment enterprises, bearing steel industry, power system industry, railway parts industry, and various related testing companies for metallographic testing. In order to improve the product qualification rate and help improve the inspection level of various laboratories, we have collected the opinions of experts and teachers from various industries to develop a new set of metallographic image analysis software system.

The FMIA2026 version of metallographic image analysis software has undergone a brand new upgrade, covering a large number of metallographic detection standards both domestically and internationally. It integrates quantitative and qualitative analysis, and adds depth of field synthesis and image field of view stitching functions. The interface is simple, allowing for continuous shooting of multiple field of view images and centralized image organization analysis. The operation is more convenient, eliminating various cumbersome steps in the previous software, making detection faster and more efficient.

Create a new set of "professional, precise, and efficient" metallographic analysis tool system to simplify metallographic analysis.

The software system national standard library contains hundreds of categories, basically covering commonly used metallographic standards, which are suitable for the requirements of metallographic analysis and inspection in the vast majority of units. Specify open related categories according to the needs of different industries and meet industry testing requirements. Lifetime free access to all modules, lifetime free upgrade standard.

Given the continuous increase in new materials and imported grade materials, materials and evaluation standards that have not yet been entered into the software can be customized and entered separately.

Advantages and Function Introduction of FMIA2026 Metallographic Analysis Software：

●Batch shooting and collection of video images：Multiple image batch processing functions such as batch shooting, batch name setting, batch saving, and batch scaling printing make the batch sample inspection process more convenient and efficient.

●Advanced camera settings：Function settings such as exposure time, gain, clarity, saturation, gamma value, contrast, brightness, white balance, black balance, etc.

●One click full system calibration：The calibration function has been upgraded to complete all objective lens parameter calibration with just one click. Compared to the original calibration method, the new calibration method is more convenient and fast to operate.

●Image processing function：Color separation, grayscale conversion, threshold segmentation, binarization processing, image enhancement, inverse adjustment, sharpening adjustment, scratch and stain processing, image histogram, etc.

●Image's determination multiples output：Multiple image scaling printing, custom image names, scale bar parameter settings, export PDF/Word/Excel, print preview and other functions.

●Image measurement and archiving：There are various types of measurement tools available, including distance, angle, angle between two lines, rectangle, point line distance, ellipse, polygon, parallel line distance, three-point arc, three-point circle, etc. Arrows can be drawn, text can be annotated, auxiliary lines can be added, line width can be modified, multiple length units can be selected, measurement data font color, size, font style can be selected, and test data can be summarized and exported to Excel.

●Organizational analysis function：The detection standard module in the software library is diverse, including GB/ASTM/ISO/DIN/QC/JB/DL/TB/SS and other organizational analysis standards. The standard number in the software library is upgraded, and new standards can be upgraded for free. It has three types of metallographic rating functions: automatic, comparative, and auxiliary. Convenient to use, concise and fast, with accurate and reliable measurements.

●Advanced customization features：Customized microscope electric stage control function, image confocal, 3D light map, image database, etc.

●Diversified report templates：Automatically generate graphic and textual metallographic analysis reports, with the option to generate single module or multi module report styles. The report template can modify and add enterprise logo, company name, testing process, and other content. Customized report templates can be customized according to needs.

●AI organizational analysis function：Customizable AI organization analysis module, utilizing artificial intelligence to complete the entire microstructure analysis and detection process, automatically identifying material microstructure structure and analysis, with simple operation process, reducing personnel labor intensity, and improving material detection efficiency.

●National Standard Library：It contains hundreds of national standard images for customers to learn and refer to.

●EDF depth of field expansion function：For samples with uneven preparation and inability to focus, the software provides a dynamic EDF depth of field shooting function. By adjusting the Z-axis micro focusing handwheel of the microscope, clear details in the sample will be continuously added to the dynamic EDF display window for dynamic updates. The software automatically records clear images at different depths of field and merges them into a clear image.

●Image stitching function：For customers who need to detect larger field of view requirements, the software provides image stitching function. Users can achieve the need for larger field of view image shooting by moving the X-Y platform direction of the microscope, solving the embarrassment of not being able to capture images caused by the insufficient field of view of the microscope.

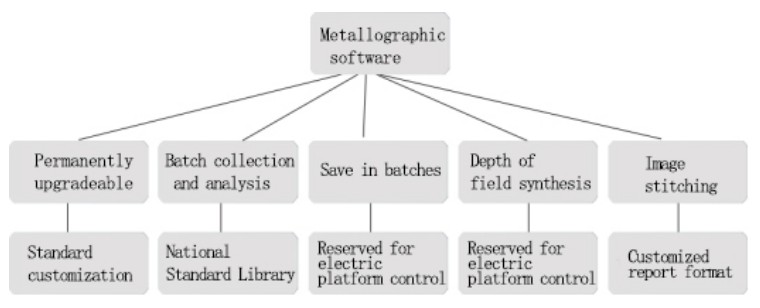

Excerpt of Common Modules in FMIA2026 Metallographic Analysis Software：

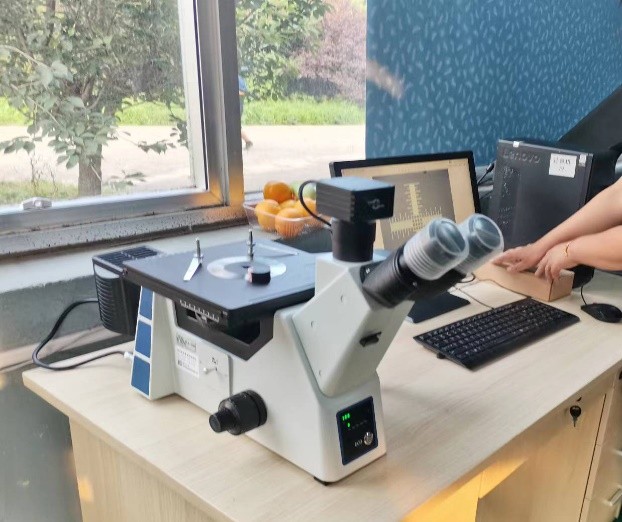

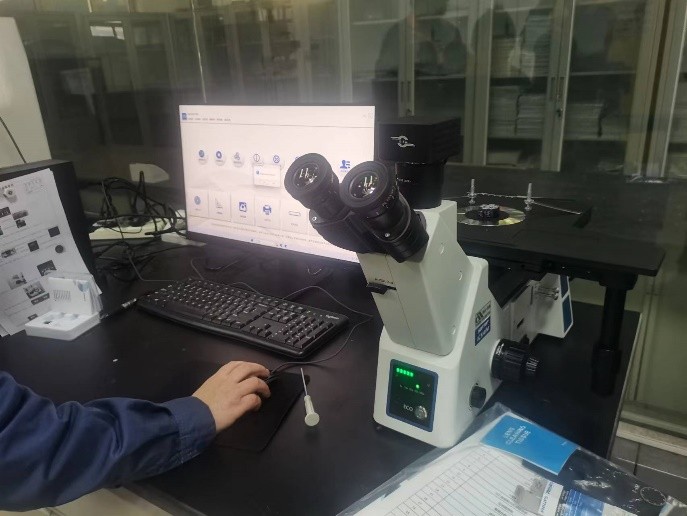

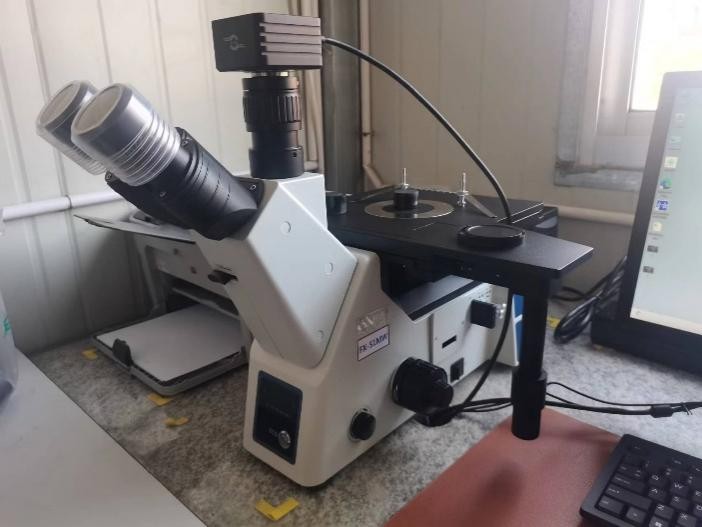

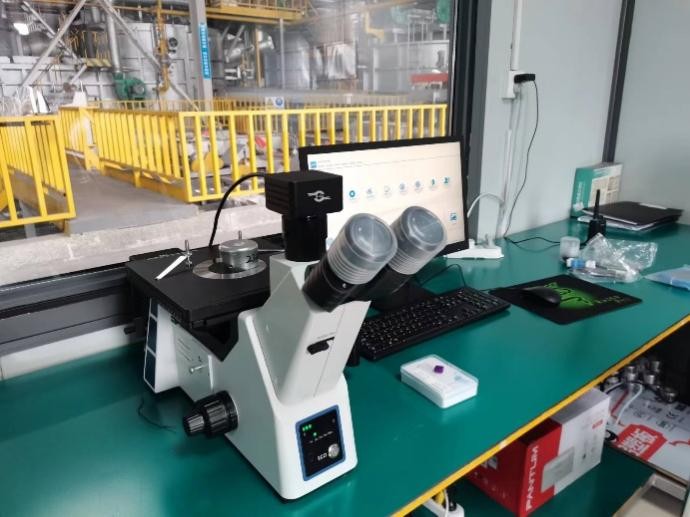

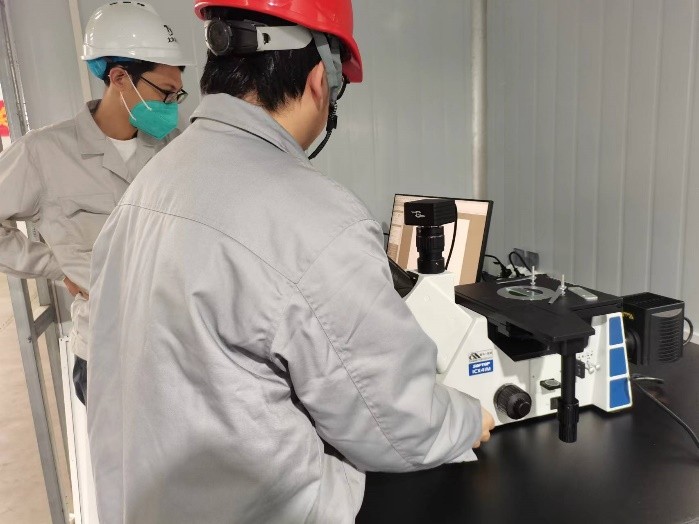

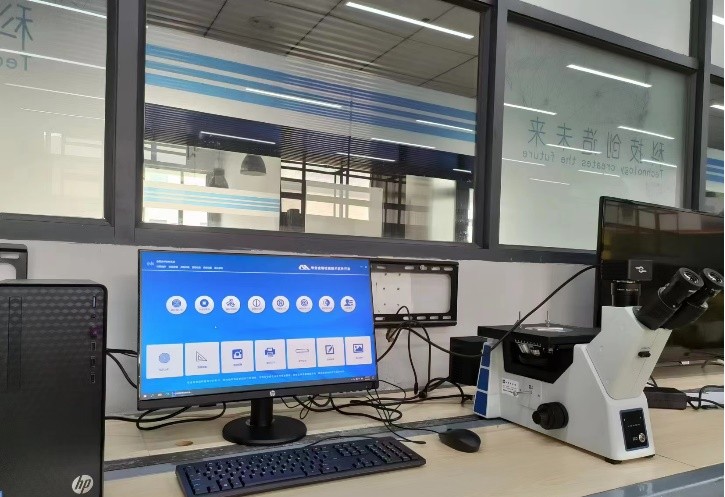

FX-41MW Research grade metallographic microscope application cases：
