Overview of FCM3000W Computerized Metallographic Microscope

The FCM3000W computerized metallographic microscope is a high-precision analytical instrument specially designed for the microstructural analysis of metallic materials. It integrates a robust microscope body, a high-definition imaging device, and genuine metallographic image analysis software, providing users with a comprehensive and efficient solution for metallographic structure detection and analysis.

This microscope is widely used in various fields such as metallographic structure analysis of metal materials (including pearlite, nodularity, grain size, graphite morphology, etc.), metallographic analysis for teaching and scientific research, and precision engineering measurement. It is an indispensable tool in the fields of materials science, metallurgical engineering, and mechanical manufacturing.

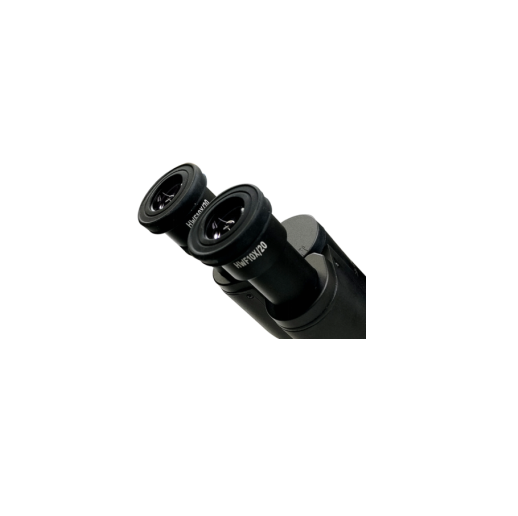

Wide-view eyepiece

The design of the large-view imaging system, with a 20mm ultra-wide field of view, brings you an unprecedented visual experience. The rubber eyecup design is more friendly to users wearing glasses, ensuring that every observer can comfortably enjoy a clear view.

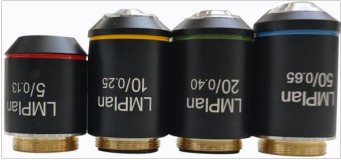

Long working distance professional metallographic objective lens

The long working distance professional metallographic objective lens, through advanced optical optimization design and professional coating technology, significantly improves imaging resolution and aberration correction capability, providing a more precise digital solution for the observation and analysis of microstructures.

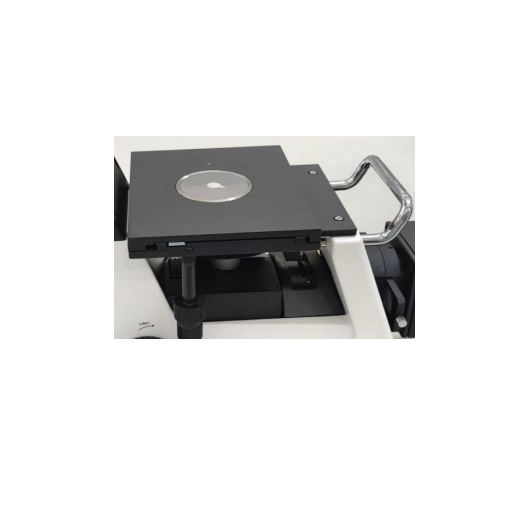

Mechanical mobile platform

Equipped with a large-sized heavy-duty platform measuring 180×150mm, the right-hand design aligns with the operational habits of most people. The focusing mechanism and platform movement operations are easily switchable, enhancing work efficiency. The ultra-wide carrying handle facilitates easier and smoother equipment transportation.

The front-facing brightness display function

utilizes a built-in brightness sensor to show the current brightness in real-time directly in front of the instrument, making instrument operation more efficient and convenient.

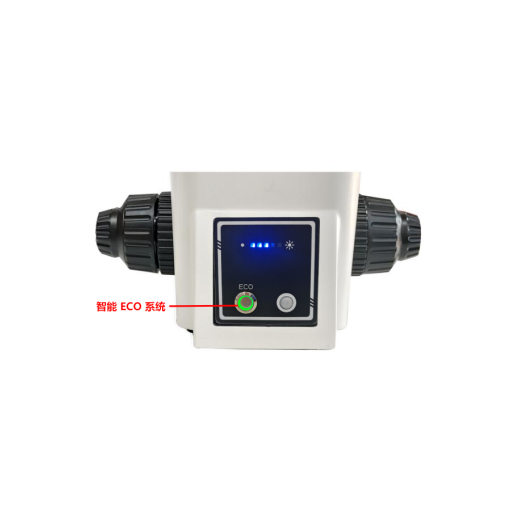

Brand-new intelligent ECO system

ECO Infrared Sensing System: When the microscope remains idle for an extended period, the ECO Infrared Sensing System demonstrates its dual advantages of environmental friendliness and cost-effectiveness. Equipped with cutting-edge infrared sensing technology, this system precisely monitors any human activity around the microscope. Upon detecting the microscope's idle state, the system automatically powers off, transitioning the microscope into a sleep mode. This not only significantly reduces energy consumption but also enhances the safety of the instrument.

Full-spectrum LED lighting

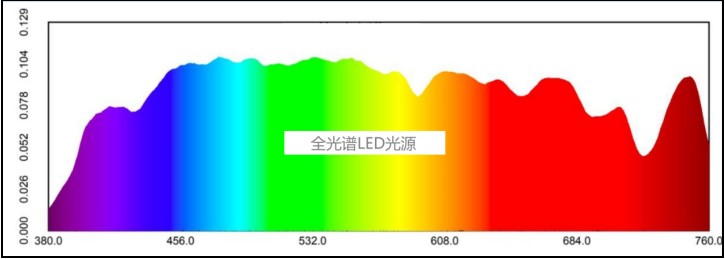

Full-spectrum LEDs, with wavelengths ranging from 400nm to 700nm, offer a broader spectral range that encompasses all colors found in natural light, achieving a more natural lighting effect and better revealing all internal organizational structures of metals. Compared to halogen light sources, full-spectrum LED lighting boasts a longer lifespan, slower light decay, and lower power and loss.

Configuration table of FCM3000W computerized metallographic microscope:

（Note: "·" denotes standard configuration; "O" denotes optional item）

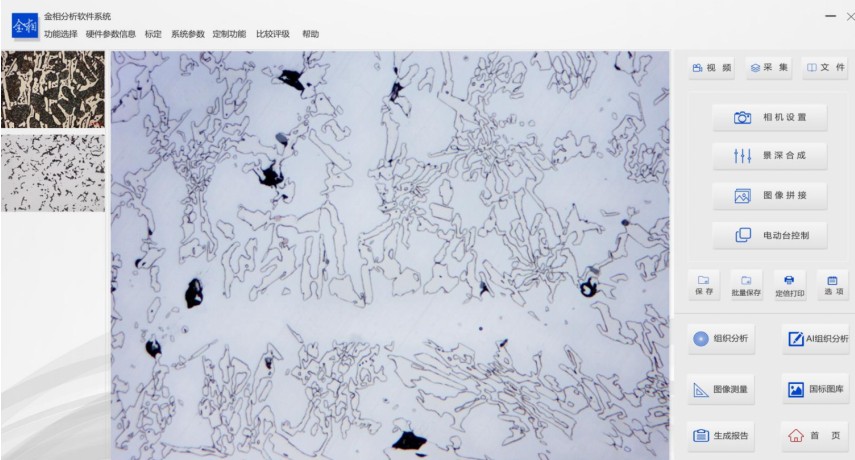

Genuine FMIA2025 metallographic image analysis software

The FMIA2025 metallographic image analysis software is a new software system developed by our company, tailored to meet the metallographic testing needs of foundry enterprises, auto parts enterprises, heat treatment enterprises, bearing steel industry, power system industry, railway parts industry, and various related testing companies. In order to improve product qualification rates and enhance the inspection capabilities of laboratories, we have gathered feedback and suggestions from experts and teachers across various industries and developed this new software system.

The FMIA2025 version of the metallographic image analysis software has undergone a brand-new revision and upgrade. The system covers a vast array of metallographic testing standards from both domestic and international sources, integrating both quantitative and qualitative analysis. It has added new features such as depth of field synthesis and image field stitching. With a clean and simple interface, it allows for continuous shooting of multiple field images, centralized image organization and analysis, and more convenient operation. It eliminates various cumbersome steps found in previous software, making testing faster and more efficient.

We have developed a brand-new metallographic analysis tool system that is "professional, precise, and efficient", making metallographic analysis simpler and more straightforward.

The national standard library of the software system encompasses hundreds of categories, essentially covering commonly used metallographic standards and meeting the requirements of most units for metallographic analysis and inspection. Relevant categories can be designated and opened according to the needs of different industries, satisfying industry testing requirements. All modules are free to use for life, and standards are free to upgrade for life.

In light of the continuous increase in new materials and imported grades, materials and evaluation standards that have not yet been entered into the software can be individually customized and entered.

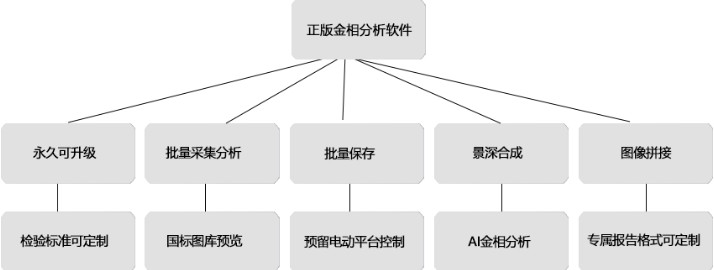

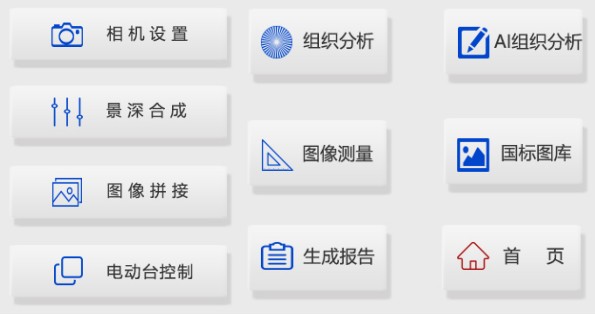

Introduction to the advantages and functions of FMIA2025 metallographic image analysis software product:

● Batch shooting, collection, and archiving of video images: Batch processing functions such as batch shooting, batch naming, batch saving, and batch printing at a fixed magnification make the batch sample inspection process more convenient and efficient.

Camera settings: functional settings such as exposure time, gain, sharpness, saturation, gamma value, contrast, brightness, white balance, and black balance.

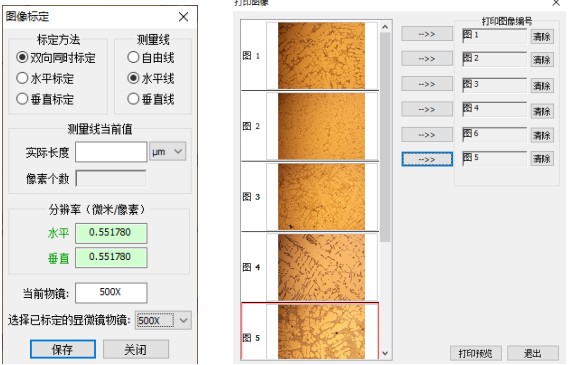

● Image calibration: The calibration function has undergone a complete upgrade, allowing for the completion of all objective lens parameter calibrations with a single click. Compared to the original calibration method, the new calibration method is more convenient and efficient to operate.

● Image processing functions: color separation, grayscale conversion, threshold segmentation, binarization, image enhancement, inversion adjustment, sharpening adjustment, scratch and stain processing, image histogram, etc;

● Fixed magnification printing function: multiple images fixed magnification printing, custom image naming, scale bar parameter setting, exporting to PDF/Word/Excel, print preview, and other functions.

● Image measurement and archiving: Diversified types of measuring tools (including distance, angle, angle between two lines, rectangle, point-to-line distance, ellipse, polygon, parallel line spacing, three-point arc, three-point circle, etc.), ability to draw arrows, annotate text, add auxiliary lines, modify line width, multiple options for length units, multiple options for font color, size, and style of measurement data, and the ability to summarize and export test data to Excel tables.

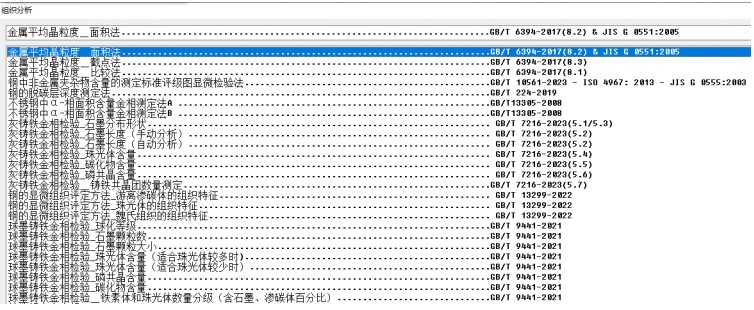

● Tissue analysis function: The software library features a diverse range of detection standard modules, encompassing tissue analysis standards such as GB/ASTM/ISO/DIN/QC/JB/DL/TB/SS. The standard numbers in the software library are updated, allowing for free upgrades to new standards. It boasts three metallographic grading functions: automatic, comparative, and assisted. The software is easy to use, simple, and fast, ensuring accurate and reliable measurements.

● Advanced functional modules: EDF depth of field expansion function, image stitching function

● Advanced customization features: Customizable microscope electric stage control function, image confocal scanning, 3D optical imaging, image database, etc.

● AI tissue analysis function: Customizable AI tissue analysis module, utilizing artificial intelligence to complete the entire process of microscopic tissue analysis and detection, automatically identifying and analyzing the microscopic tissue structure of materials. The operation process is simple, reducing labor intensity and enhancing material testing efficiency.

● National standard icon library: Contains hundreds of national standard icons for customers to learn and reference.

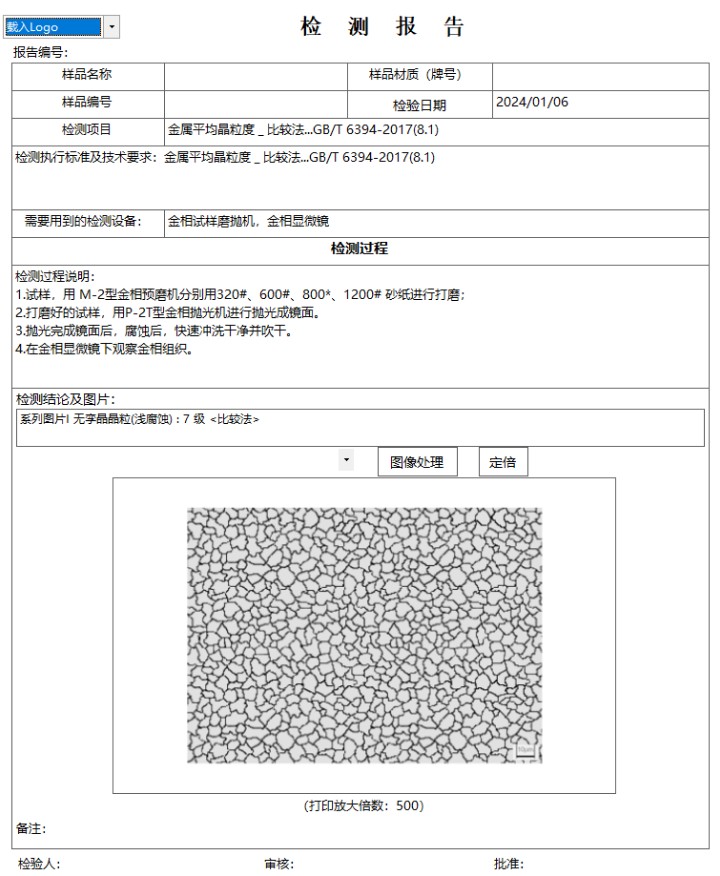

● Diverse report templates: Automatically generate comprehensive metallographic analysis reports with vivid illustrations, offering options for single or multiple module report formats. The report templates can be customized with company names, testing procedures, and other relevant content. Tailored report templates can be created according to specific needs.

Composition of FMIA2025 version metallographic analysis software system:

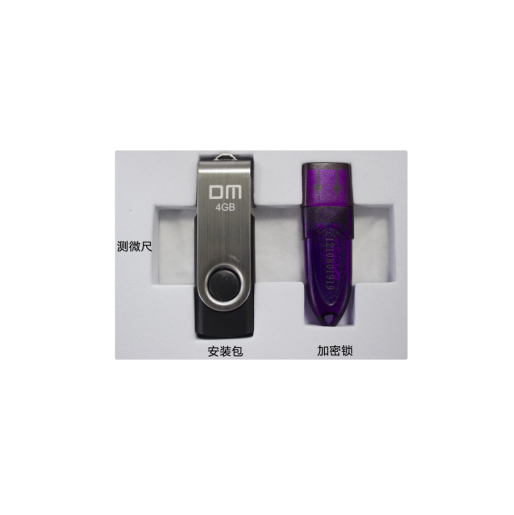

1、Software program FMIA2025 (USB flash drive);

2、Encryption lock: USB type + dynamic code verification;

3、Textual materials: "User Manual" (on a USB flash drive);

4、Micrometer scale: scale value 0.01mm.
