1. WDW-20 Computerized Electronic Universal Testing Machine

2. XYZ-B Dumbbell-shaped Processing Machine

3. XJJ-5 Simple Beam Impact Testing Machine

4. XJJ-50 Simple Beam Impact Testing Machine

5. XQZ-A Gap Machine

6. XJL-15 Dropping hammer Impact Testing Machine

7. XJL-300 Tubular Materials Dropping Hammer Impact Testing Machine

8. XGY-16 Plastic Tube/Pipe Compression Testing Machine

9. XHW-20 Tubular Materials Ring Stiffness Testing Machine

10. XWY-300B Thermal Deformation & Vicat Softening Point Tester

11. XNR-400B Melt Flow Indexer

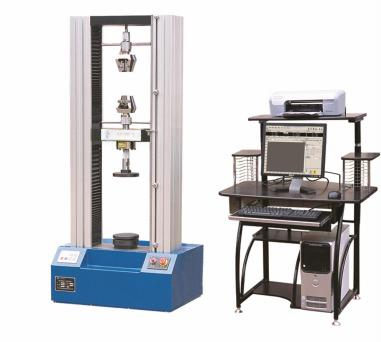

WDW-20 Computerized Electronic Universal Testing Machine

1. Uses:

WDW-20 is applicable for tensile, compression, bending, shearing, peeling and tearing test of metal materials and non-metal materials. They may add test methods or rules of other  materials  to  customers’  need.  They  are  essential  testing  instrument  for  quality testing section,  university  and  colleges,  research  institution  and  industrial  and  mining enterprise.

2.  Main technical specifications:

2.1 Capacity: 0.2KN- 20KN

2.2 Accuracy: ±1%;

2.3 Resolution: 1/300000 of max. Capacity, no stalls or 5 stalls according to the customer’s order;

2.4 Displacement accuracy: within ±0.5%;

2.5 Resolution of displacement: 0.001mm

2.6 Speed: 0.001-500mm/min

2.7 Measure range of deformation: 2%～100%FS;

2.8 Tensile space: 800mm;

2.9 Testing width: 370mm;

3.0 Power: 380V±10%, 50Hz or 220V±10%, 60Hz; 3 phrase; Weight: 600kg

3.  Working condition:

3.1 Room temperature10℃-35℃ , the relative humidity is≤ 80%

4. Main configuration:

4.1 Servo driver: Import HITACHI series

4.2 Servo motor: Import HITACHI Series

4.3 Load sensor: High-precision load sensor Imported America Celtron (One)

4.4 Leading screw: precision leading ball screw

4.5 Grips: Tensile grips: flat specimen jaw: 0-7mm, 7-14mm.

Round specimen jaw: φ4mm-φ9mm, φ9mm-φ14mm Compression grips and Three-point Bending grip.

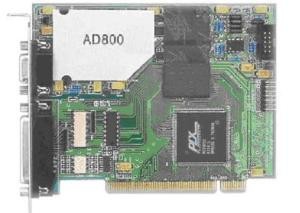

4.6 Tianchen AD-800 Three closed loop universal testing card (One set in computer)

4.7 Dell computer, 17 inches LCD monitor

4.8 Printer: HP A4 color inkjet printer (One)

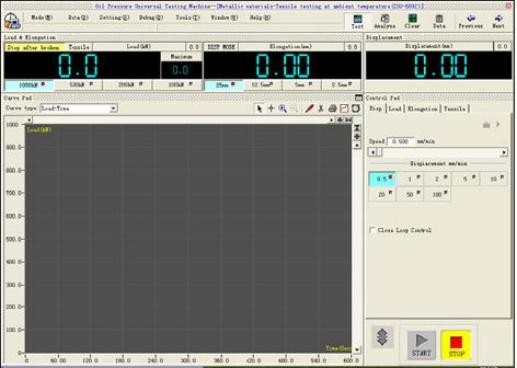

4.9 Professional testing software

XYZ-B Dumbbell-shaped Processing Machine

1.Main functions

This  machine  is  used for  manufacturing dumbbell sample  in the  course of non-metal tensile test. There is clip collector along with the machine.  It is corollary equipment of universal testing machine.

2. Main technical specifications

2.1Type of specimen:  : Ⅰtype, Ⅱtype

2.2 Maximum thickness of specimen:50mm

2.3 Profile modeling and milling cutter can be made according to the specimen supplied by clients

XJJ-5 Simple Beam Impact Testing Machine

Function

This machine is suitable for the impact toughness test of nonmetal materials including rigid plastics, strengthen nylon, glass fiber reinforced plastic, electrical insulating materials, etc.

Main Technical Specifications:

1. Impact speed: 2.9m/s

2. Impact energy(J): 0.5, 1, 2, 4, 5

3. Moment of impacting pendulum: Pd0.5=0.2679Nm; Pd1.0=0.5358Nm

Pd2.0= 1.0718Nm; Pd4.0=2.14359Nm; Pd5.0=2.6794Nm

4. Raising angle of pendulum: 150° ;

5. Impact center distance: 230mm

6. Span of support(mm): 40, 60, 62, 70, 95

XJJ-50 Simple Beam Impact Testing Machine

Function

This machine is suitable for the impact toughness test of nonmetal materials including rigid plastics, strengthen nylon, glass fiber reinforced plastic, electrical insulating materials, etc.

Main Technical Specifications:

1. Impact speed: 3.8m/s;

2. Impact energy (J): 7.5, 15, 25, 50;

3. Moment of impacting pendulum;

Pd7.5=4.0192Nm; Pd15=8.0385Nm; Pd25= 13.397Nm; Pd50=26.795Nm;

4. Raising angle of pendulum: 150°

5. Impact center distance: 395mm

6. Span of support(mm): 40, 60, 70, 95

XQZ-A Gap Machine

Main functions

This machine is used to make gap on cantilever beam and simple beam impacting testing machine. It can make one or more gap at one time. The dimension of gap is accurate.

Main technical specifications

1. Cutter stroke:36mm;

2. Feeding stroke:10mm,;10mm, and the feed volume is variable

3. Type of specimen:1type, 2type, 3type, 4type

4. Type of gap: A type, B type, C type;

5. Parameter of cutter:

cutter of A type:45 °±30 ′ , r=0.25±0.025;

cutter of B type:45°±30 ′ , r= 1±0.025;

cutter of C type: width  Ⅰ=2±0.2 , r≤0.1;

                           width Ⅱ=0.8±0.1, r≤0.1

XJL-15 Dropping hammer Impact Testing Machine

Ⅰ、Function:

This series machine is mainly used to test the impacting strength of plastic profile in low temperature.

II、Applicable Standards：

GB/T  8814-2004:  Unplasticized  polyvinyl  chloride  (PVC-U)  profiles  for  the  doors  and windows.

Ⅲ、Main Technical Specifications：

1. Maximum impacting energy: 15J

2. Maximum impacting height:1500mm±2mm

3. Radium of hammer: 25mm ±0.25mm

4. Weight of hammer: 1000g±5g

5. Support span of specimen: 200mm

6. Dropping hammer bouncing lock rate: 100%

7. Levelness of worktable:  ≤ 1/ 1000

XJL-300 Tubular Materials Dropping Hammer Impact Testing Machine

Ⅰ、Main functions

This series machine is widely used for the external loads impact strength test of plastic tubular materials and tubular components and also suitable for the external loads impact strength test of plastic board and profile.

II、Product features

1. This machine adopts manual and automatic work module and the operation is convenient and easy.

2.  PLC  controller  and  LCD  human-machine  interface  realize overall process of test automatic control.

3. Automatically adjust the zero point of the specimen.

4.  The  device  of  avoiding  second  impact  makes  the  testing result more accurate.

5. Auto protection and auto prompting improve the safety and reliability of test.

6. The lower space can be electrically adjusted, and test specimens automatically, which improves the accuracy of specimen position, reduces the intensity of labor and improves efficiency of work.

Ⅲ、Main technical specifications

1. Maximum impact energy: 300J

2. Maximum impact height: 2000mm±5mm

3. Weight of hammerhead(kg):0.5, 0.8, 1.0, 1.25, 1.6, 2.0, 2.5, 3.2, 4.0, 5.0, 6.3, 8.0, 10.0, 12.5, 16.0, error±0.5%

4. Model of hammerhead: d25, d90

5. Diameter of pipe specimen:10- 400mm (The range can be increased according to the requirements of customers).

6. Power supply: 220V±10%

7. Temperature of working environment:10℃-30℃; relative humidity:≤80%;

8. Overall dimension of host machine (L×W × H)(mm):850×750×3600;

9. Weight:600kg

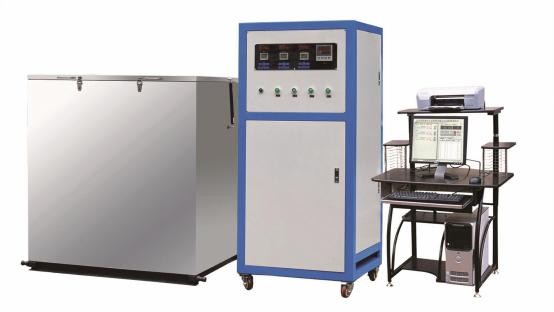

XGY-16 Plastic Tube/Pipe Bursting Testing Machine

ClampA type

Clamp B type

1. Uses:

This machine is mainly used for all kinds of plastic pipes at a constant temperature and pressure transient performance of the bursting pressure of the determination of the plastic pipe manufacturers, tertiary institutions, the quality of scientific research units and units of essential equipment.

2. Standards:

3. Main technical specifications:

3.1 Maxi. Capacity: 6MPa, 10MPa, 16MPa, 25MPa; (It can be chosen by the customer)

3.2 Grips:

Diameter of pipe: ф 16- ф500mm

Type: <ф200, can choose A type or B type, >ф200, can choose B type

The grips materials can be Aluminum, 45# chrome steel, stainless steel;

3.3 Test station: 3 stations or chosen by the customer

3.4 Pressure accuracy: ≤±1%

3.5 Constant pressure range: 0.2Mpa~Max. capacity

3.6 Constant pressure accuracy: -1%~+2%

3.7 Constant Temp. Range: Room Temp. ~95℃ or 20℃~95℃

3.8 Temp. Accuracy: ±0.1 ℃

3.9 Temp. evenness: ±1  ℃

3.10 Time range: 1s-10000h

3.11 Time   accuracy: ≤±0.1%

3.12 Power supply: 3 phase, 380v±10%, 50Hz

4. Functions and features:

4.1 Single control, it can be set different testing force and testing time separately. Unpack any station during test process.

4.2 Double-solenoid valve control, ensure the stability of pressure.

4.3 It can save the test data and condition when the power is off; it can continue to finish the test when the power is on.

4.4 It can check the test condition during the test process.

4.5 3 buffer design, it can make the pressure to be more stable.

4.6 The water and power is separated, is much safer.

4.7 It can record the test result and print the result in standard format.

4.8 Install the grips easily, reliably and sealing well.

4.9 Rotary piston pump, supply the pressure uniformly and smoothly.

4.10  Reserve  the  data  interface,  it  can  connect  with  internet  directly  and  share  the resources.

5.  Main configuration:

5.1 Pressure pump system                                                      1 set

5.2 High-pressure water solenoid valve (German)                 6 pcs

5.3 High-precision sensor                                                       4 pcs

5.4 Water pressure buffer (stainless steel, special)               3 pcs

5.5 Accumulator (Large and small anti-corrosion type)         4 pcs

5.6 Horizontal high and constant temperature test water tank 1 set

5.7 Electric hoist lifting device, riding escalator                       1 set

5.8 Heater (Stainless steel)

5.9 Circulating pump (Stainless steel centrifugal pump)         1 set

XHW-20 Tubular Materials Ring Stiffness Testing Machine

Ⅰ、Main functions

This machine is mainly used for the ring stiffness test (including ring softness test and flatness test) of all kinds of tubular materials. To meet with special needs, it can add three functions, i.e. tension, compression and bend. This machine is one kind of multifunction electronic universal testing machine.

Main technical specifications

II、Product catalogue

XHW-20 Computer Control Type

Ⅲ、Product features

1. For the tubular materials that the inside diameter is anomalistic, the measuring device of wall thickness deformation should be equipped to measure the deformation of inside diameter. The measuring accuracy is high and control is reliable.

2. Data acquisition and  process of digital display type  is finished by single chip. LCD displays testing force, deformation and rate of compression and testing report can be automatically printed. The deformation and rate of compression can be preset and testing data need artificial calculation and arrangement.

3. Computer  control  type  adopts  advanced  CMOS  chip   integrated  technology  and professionally  designed  data  acquiring  mu-factor  and  controlling  software,  which  can automatically calculate ring stiffness, ring softness and son on.

Ⅳ 、Technical specification

1. Maximum testing force:20Kn;

2.  Measuring range of testing force:XHW:0.2-20kN

3. Accuracy of testing force:±1%;

4.  Speed of compression: XHW: 0.01～500mm/min, Variable speed

5.  Diameter range of pipe specimen: 20-500mm OR 200-1500mm;

6.  Power supply: 220V±10%, 50Hz;

7. Working Environment:10℃-30℃ , relative humidity≤80%

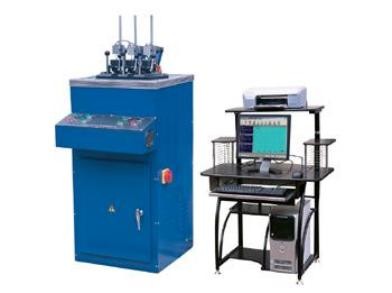

XWY-300B Computer Control Type Thermal Deformation and Vicat Softening Point Tester

Ⅰ、Main functions

This series machine is mainly used to test the thermal deformation and vicat softening point of non-metal materials, such as plastic, rubber, nylon, electrical insulating materials, etc.

Ⅱ、Product catalogue

XWY-300A and XWY-300C are Digital Display Type XWY-300B and XWY-300D are Computerized Type

Ⅲ、Main technical specifications

1. Deformation measuring accuracy:0.01mm

2. Range of measuring temperature: Room temperature-300℃

3. Warming speed ratio:50℃/1h; 120℃/1h

4. Heater Power:≤5kW/220V

5. Service positions of test:3- 6.

XWY-300B Computerized Type Thermal Deformation and Vicat Softening Point Tester Product features

1.  Computer  collects  temperature  fluctuation  and  controls  overall  process,  real  time displays curve fluctuation and auto prints the test result.

2. The software adopts menu and crypto guard, which make operation more practical.

3.  Every  route  has  separate  temperature  sensor,  which   makes  the   machine  more accurate.

4. Excel report forms can be automatically compiled;

5. Sample rack can automatically ascend and descend and operate easily

XNR-400B Melt Flow Indexer

1. Uses:

XNR-400B Melt Flow Indenxer is to test the liquidity under high temperature. It is can test many materials, such as polyethylene, polypropylene, POM, ABS resins, polycarbonate, nylon fluoride plastic and so on. It is suitable for enterprise and research department.

2. Main technical specifications:

2.1 Temperature range: room temperature~400℃

2.2 Accuracy: ±0.5℃

2.3 Standard load: 8 class

2.4 Diameter of die: φ2.095mm, length 8mm ,diameter of feeding tube: φ9.550, length 152mm

2.5 MFR g/ 10min=600W/t

2.6 LED display

2.7 Print the test report

2.8 Power supply: 220V±10%       50Hz

2.9 Work environment:10 ℃ ~40 ℃ , the relative humidity 30%-80%, No aggressive media around, no more air convection; around no vibration, no strong magnetic interference.

2.10 Dimension: 250×350×510mm(L×W × H)
