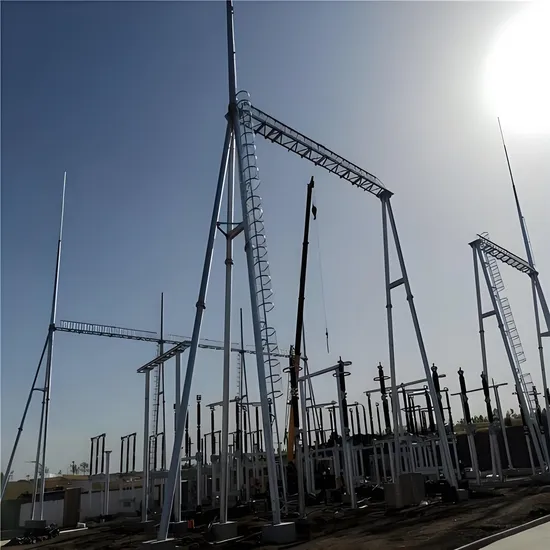

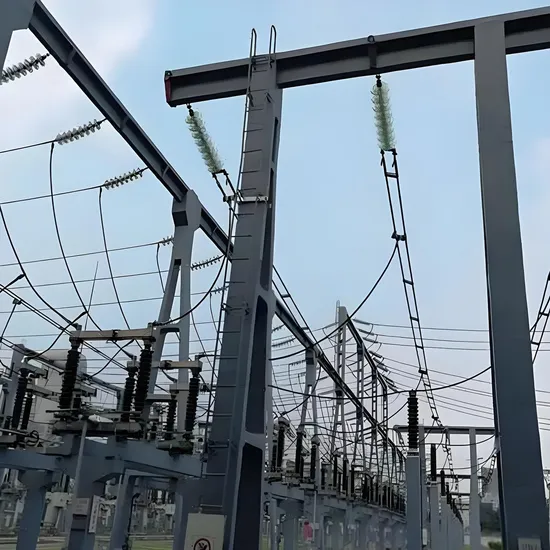

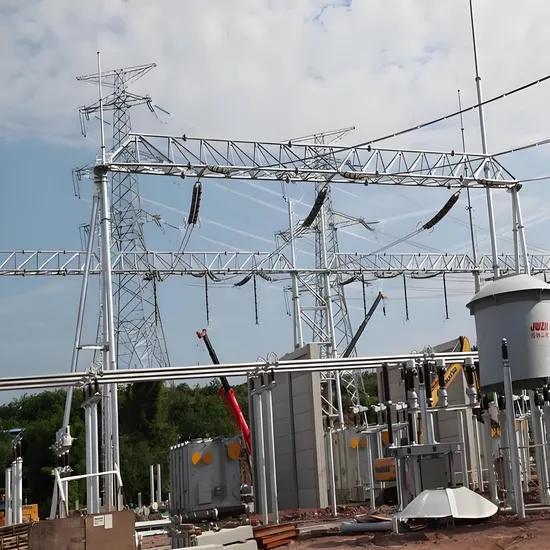

Name: High Tensile Strength Alloy Tubular Structure Advanced Substation Structure
SKU: 0



Custom alloy tubular substation structures with modular installation, high wind and seismic resistance, and GB, ANSI/AISC, BS, IEC compliance.

Product Details

Customizable Dimensions: Frame height 8m-35m and beam span 6m-25m can be customized per project.

Multi-Standard Compliance: Designs support GB, ANSI/AISC, BS, IEC, and ASCE standards.

Long Service Life Options: Available service life grades of 30, 50, or 100 years.

Modular Installation: Prefabricated design allows quick on-site assembly and short construction.

High Wind & Seismic Resistance: Designed for wind speeds up to 35m/s and seismic intensity 8.

Comprehensive Technical Support: 24-hour response, assembly drawings, and online video guidance.

Item	Specification
Customization	Available
After-sales Service	24-hour technical support response, installation...
Connection Form	Bolt connection
Model No.	Custom
Feature	High intensity
Install	Support installation
Parameter Category	General parameters & range
Structural Type	A-frame (herringbone), portal frame, π-type frame...
Applicable Voltage Level	35kV, 110kV, 220kV, 500kV, 750kV and above
Design Wind Speed	27–35 m/s (or higher)
Ice Cover Thickness	5mm, 10mm, 15mm, etc.
Seismic Fortification Intensity	Intensity 8 (common design value)
Frame Height	8–35 m (common range; customizable)
Beam Span	6–25 m (common range)
Column Material	Q235B, Q345B, Q420 high-strength steel; or concrete
Connection Type	Flange connection, bolted connection, welded connection...
Transport Package	Single-base tower materials are bundled according...
Specification	30 m³
Origin	China
Production Capacity	8,000 tons / year
Package Size	6000 × 60 × 60 cm
Package Gross Weight	3,000 kg
