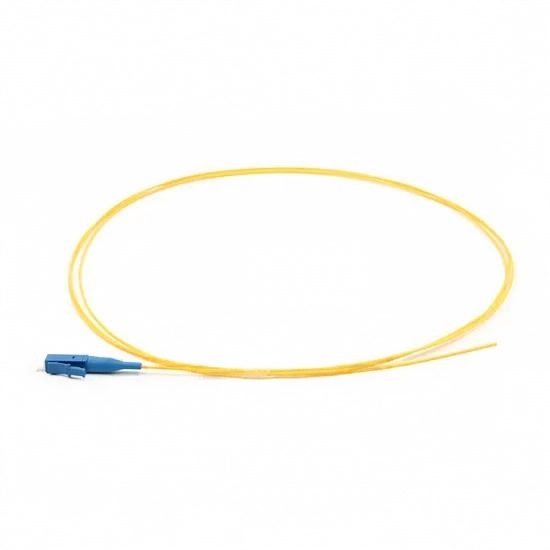

Indoor Simplex LC/UPC Fiber Optic Pigtail OS2 Single Mode 9/125 Custom 0.9mm Cable for Data Transmission Patch Panel ODF Fusion & Mechanical Spliceable Jumper

Custom OS2 9/125 LC/UPC fiber optic pigtail with 0.9mm PVC cable for reliable indoor fusion or mechanical splicing in ODF patch panels.
WhatsApp: +86 15964012800
E-mail: info@x-precision.com
Inquiry Now
Product Details

1. OS2 Single-Mode for Stable Long-Distance Transmission

2. Customizable OEM Indoor Design

3. Compatible with Fusion & Mechanical Splicing

ParameterSpecification
CustomizationAvailable
ApplicationCommunication
TypeSingle-mode Fiber
Model NO.FP-1LCSM9-1
Connection StructureLC
Material ShapeRound Wire
Allowed Lateral Pressure100 (N/100mm)
Allowed Tensile Strength<100N
Core1 Core
CertificationRoHS, CE, ISO9001, VDE, CCC
BrandOEM
Sheath MaterialPVC
Connector ALC/UPC
Connector BUnterminated
Fiber CountSimplex
Fiber GradeG.657.A1
Fiber ModeOS2 9/125μm
Wavelength1310/1550nm
Cable Outside Diameter (OD)0.9mm
Min. Bend Radius (Fiber Cable)10/5D (Dynamic/Static)
Attenuation at 1310nm0.36dB/km
Attenuation at 1550nm0.22dB/km
Insertion Loss≤0.3dB
Return LossUPC≥50dB, APC≥60dB
Interchangeability≤0.2dB
Operating Temperature-10 to 60℃
Storage Temperature-10 to 70℃
Transport PackageCarton
Production Capacity80,0000 Connections Per Month
