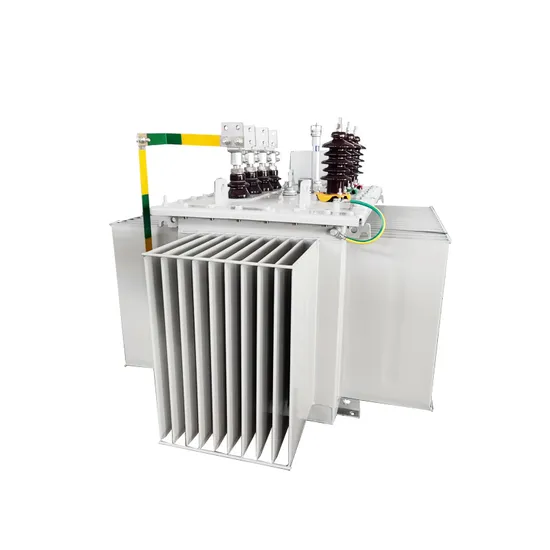

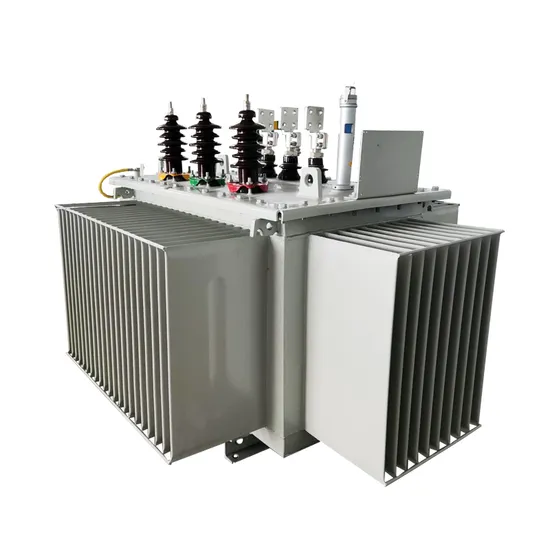

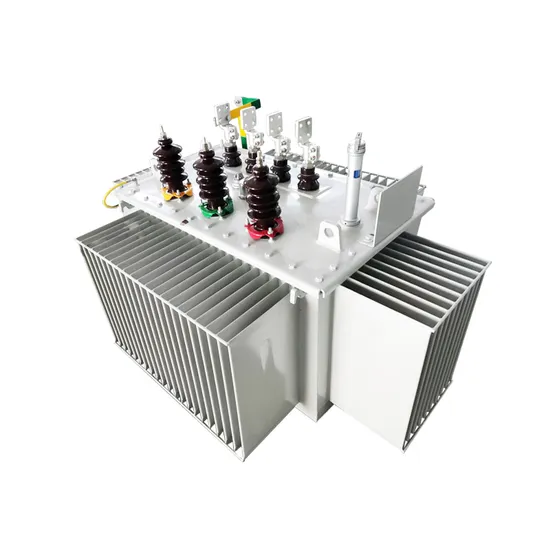

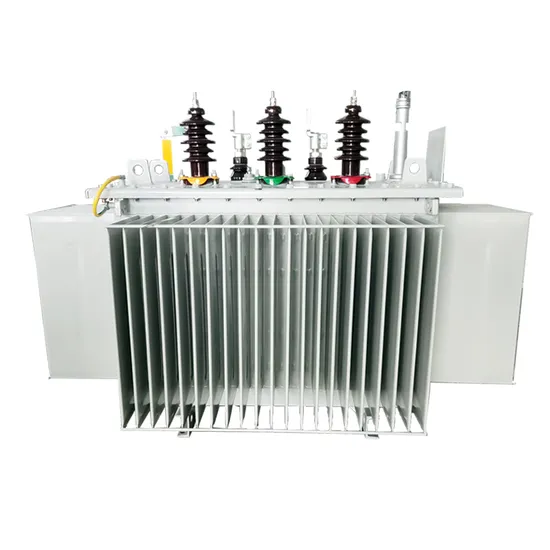

Name: High Efficiency Customized 160kVA 22kv 0.4kv Three Phase Oil Immersed Power Transformer
SKU: 0



Pearl Electric 160 kVA 22kV/0.4kV oil-immersed power transformer delivers reliable three-phase distribution with copper or aluminum windings.

Product Details

Item	Specification	Item	Specification
Model No.	PEO-S-160/22/0.4	Core	Core-type Transformer
Cooling Method	Oil-immersed Type Transformer	Winding Type	Two-winding Transformer
Certification	ISO9001-2000, ISO9001, CCC, KEMA	Usage	Power Transformer, Distribution Transformer
Frequency Characteristics	High Frequency	Shape of Core	U
Brand	Pearl Electric	Type	Oil Immersed Distribution Transformer
Reference Standards	IEC 60076	Capacity	50–2500 kVA or Customized
Rated H.V.	22 kV or Customized	Rated L.V.	0.4 kV or Customized
Impedance Voltage	4%	Cooling Way	Oil-Immersed
Core Material	Silicon Steel	Winding Material	Copper/Aluminum
Temperature Rise (W)	60/65K	Vector Group	Dyn11 / Yyn0
Insulation Class	Class A	Insulation Media	Mineral Oil per IEC 60296
Lightning Impulse Withstand Voltage	as per IEC Standard	AC Withstand Voltage	as per IEC Standard
Transport Package	Wooden Pallet, Wooden Case	HS Code	8504349000
Production Capacity	2 Million kVA/Year
