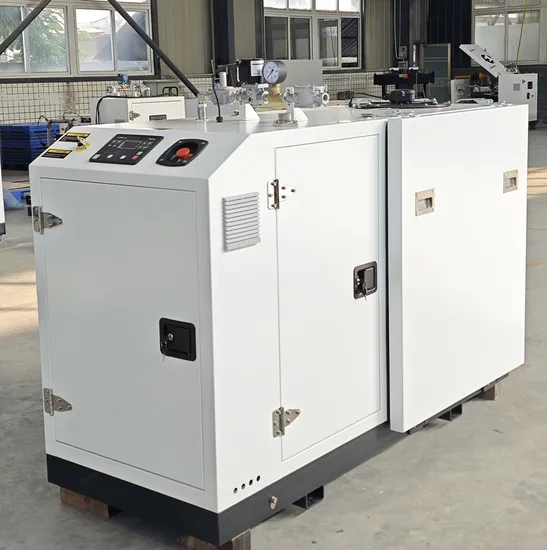

Biogas Cogenerator Micro CHP 5kw 6kw 7kw 6kVA 7kVA 8kVA

Biogas Cogenerator Micro CHP 5kw 6kw 7kw 6kVA 7kVA 8kVA

Biogas micro CHP cogenerator with 5kW-7kW output, high 88.7% efficiency, low noise and continuous 24/7 running for reliable power and heat.
WhatsApp: +86 15964012800
E-mail: info@x-precision.com
Inquiry Now
Product Details

Product Description

Biogas Cogenerator Micro CHP 5kw 6kw 7kw 6kva 7kva 8kva

Multiple units been installed around the world.

Main Characters

-Powered by 4cylinders water-cooled type internal combustion engine

-Engine RPM1500,suitable for 24hours continuous running,longer service life

-Integrated control cabinet,easy for installations

-Safe gas train

-Advanced gas engine control system, ignition system, speed control system, air/fuel ratio control system

-Auto lambda control, easy start

-3 steps heat recovery, high overall efficiency

-Soundproof canopy fully open design, easy for maintenance work

-Dual shock absorbers,less vibration

-Super silent design,  lower noise level suitable for residential area

-Low exhaust emissions NOx and CO below 50ppm/OPTIONAL

Model NameSP6B
Frequency (Hz)50
Voltage400/230
Fuel TypeBiogas
Continuous Power(KWe)6
Thermal Output(KWt)14.9
Electrical Efficiency25.5%
Thermal Efficiency63.2%
Overall Efficiency88.7%
EngineSP9EW
AlternatorKwise
ControllerComAp
CanopyWith
Noise level@100% load56dB(A)@1meter
Genset Gas Inlet Pressure2-5kpa
Gas consumption@100% load0.548/kwh
