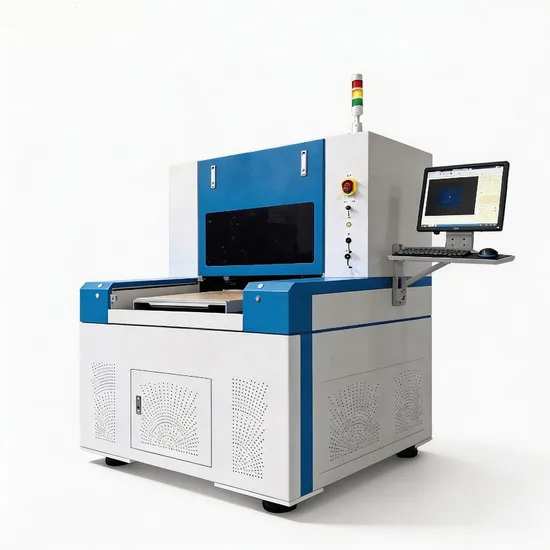

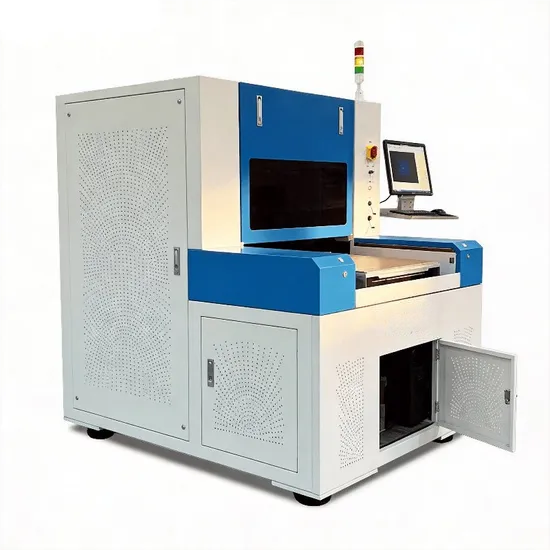

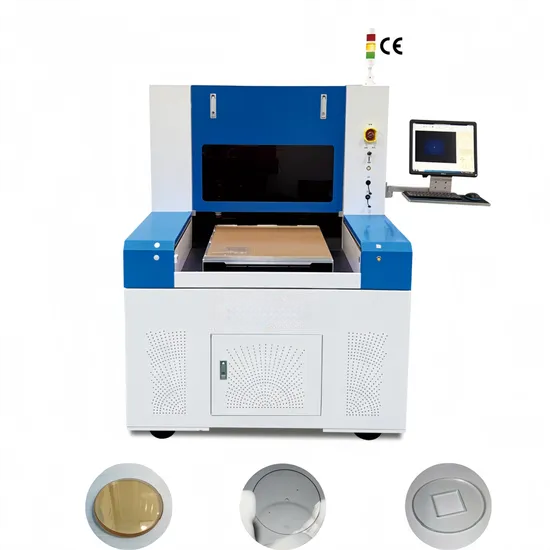

Heavy Duty Optical Glass Laser Cutting Machine for Camera Lens & Optical Instrument

Heavy Duty Optical Glass Laser Cutting Machine for Camera Lens & Optical Instrument

Cut K9 and borosilicate optical glass with a picosecond laser cutting machine. Cold, non-contact processing minimizes thermal cracks and edge chipping.
WhatsApp: +86 15964012800
E-mail: info@x-precision.com
Inquiry Now
Product Details

Picosecond Ultrafast Cold Cutting: Sub-10ps pulse eliminates heat-affected zone completely, zero thermal crack & discoloration for thick K9 and borosilicate optical lens glass.

Stress-Free Non-Contact Machining: No mechanical extrusion, edge chipping controlled below 8micron, retain original optical transmittance of camera lens substrates.

Clean Dry Laser Machining: Zero dust, wastewater and chemical residues, fully compliant with EU RoHS standard for optical component export.

Heavy-Duty Large Format Gantry Design: Customizable big working area + optional 10W/30W/35W picosecond laser for bulk thick optical lens mass cutting.

Global 24/7 Lifetime Technical Support: Online remote debugging, free operation training and spare parts consultation for optical processing factories worldwide.

Full CE Industrial Safety Certification: All electrical and laser components meet EU export norms for optical instrument manufacturers.

ItemSpecification
CustomizationAvailable
After-sales ServiceOverseas Technical Support
Warranty12 Months
Model NO.CW-6050FZ/PZ/Z
ApplicationAerospace Industry, Automotive Industry, Optical Lens, Camera & Lab Optical Equipment
Cooling SystemWater Cooling
Technical ClassPulse Laser
Applicable MaterialNonmetal
Structure TypeGantry Type
Laser ClassificationSolid Laser
Laser TechnologyOptical Glass Precision Laser Cutting
Laser TypeUltrafast Picosecond Laser
Laser Power10W/30W/35W
Working Area500*610mm
Positioning Accuracy±1um
Processing Speed≤3000mm/S
Processing Accuracy≤30um
Focus Spot20um
Scan Range of Galvanometer50*50um
Machinery Test ReportProvided
Video Outgoing-InspectionProvided
CertificationCE
Processing Thickness3mm
Processing MaterialK9 Glass, Borosilicate Glass, Camera Lens
Processing Material 2Optical Window Substrate
Power SupplyAC 380V±10%, 50~60Hz
Transport PackageWooden Case
Specification2200*1500*1750mm
Production Capacity100sets/Month
